MTC Viper Connect X Series 3-12×24 Scope
Viper Connect
No other scope looks or performs like it. The Connect range is offered in two models: both are 3-12 magnification feature super bright optical and because of their ground breaking short eye-relief design, the Viper Connect gives an amazingly wide field of view – almost double at 10x compared to a conventional scope.
Viper Connect Range
MTC Viper Connect
3-12×24
3-12x Magnification
24mm Objective Lens
Viper Connect features

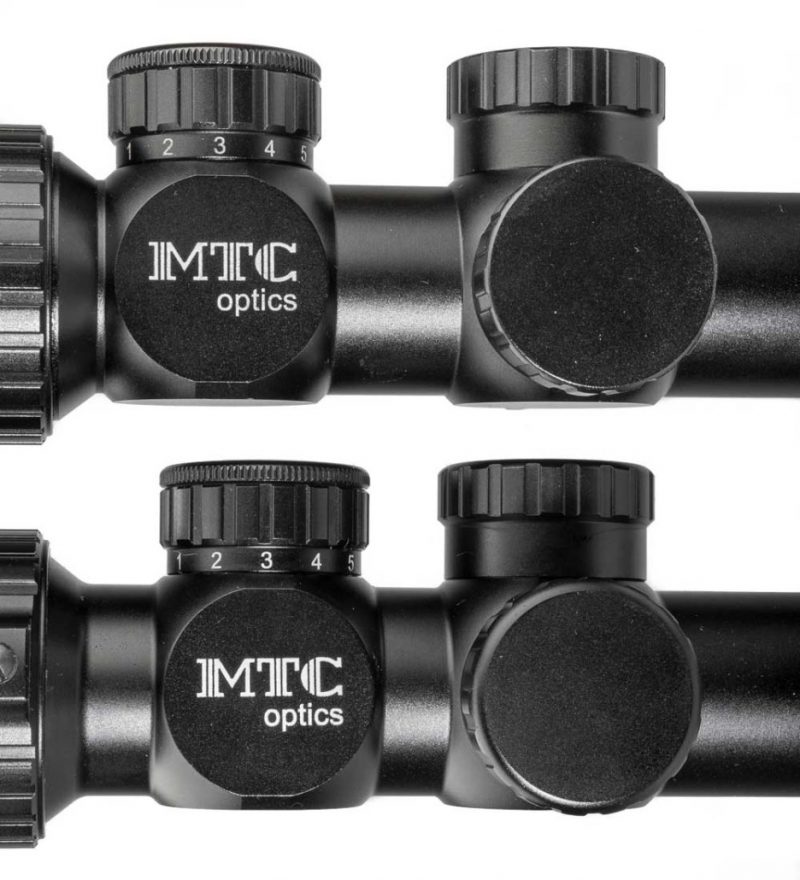

Ultra-low semi-target turrets on a 30mm tube
Choice of AMD or SCB2 illuminated reticle
Side adjustable PA (down to 10 yards)
Integral objective cover
Small, light and compact

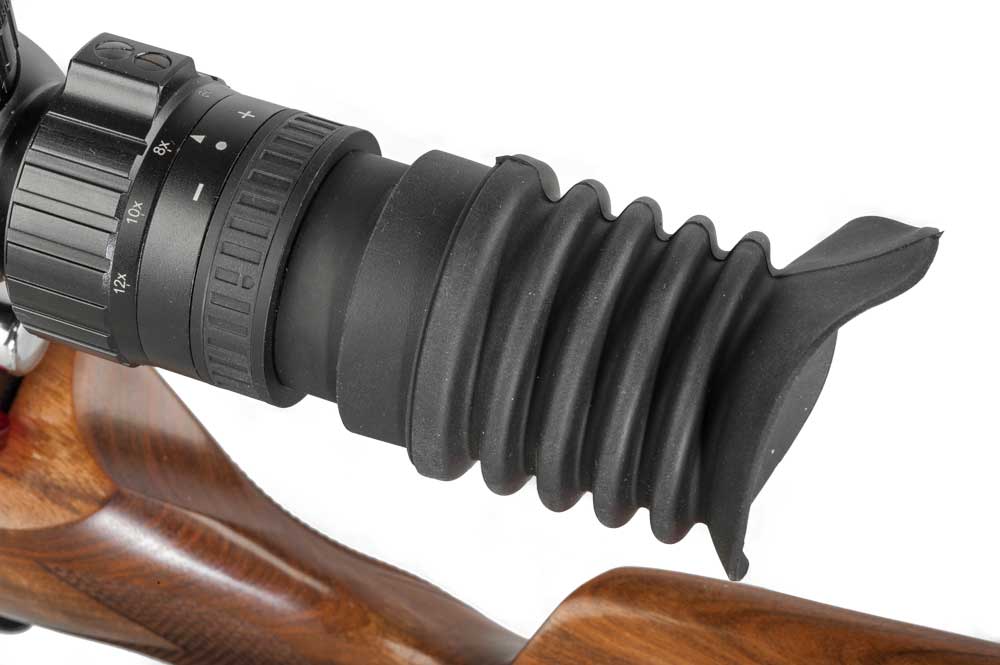

Rubber eyepiece extender supplied
Choice of 32 mm or slim line 24mm versions
Waterproof, fogproof
NB: Only suitable for low or non-recoiling rifles.
MTC AMD Reticle
.jpg)
MTC AMD Reticle
The Advanced Mil Dot (AMD) reticle builds on the success of the SCB reticle. Some users required an alternative product that continued to feature a good number of aiming points but did away with the more complicated reticle markings. The result is the MTC Optics AMD reticle. The reticle combines simplified aimpoints with see through circular milt dot markers, offering fast target acquisition with instand holdover information. Just like the SCB, the 1 mil dot square around the cross gives a rapid acquisition for small fast moving targets. When shooting at small targets or when bullet drop becomes critical the versatility of this reticle becomes clear.
Viper Connect Technical Specifications
MTC Viper Connect 3-12×24
Magnification – 3-12x
Objective Lens – 24mm
FOV (feet@100yds) – 60.9 / 17.1
Diopter Adj – +/-2
Eye Relief – 30mm
Parallax Setting – 10yds -infinity
Adj per click – 1/4:1 click
Max Windage Adj – 120moa
Max Elevation Adj – 120moa
Tube – 30mm
Illumination – Red
Length – 287mm
Weight – 600g
