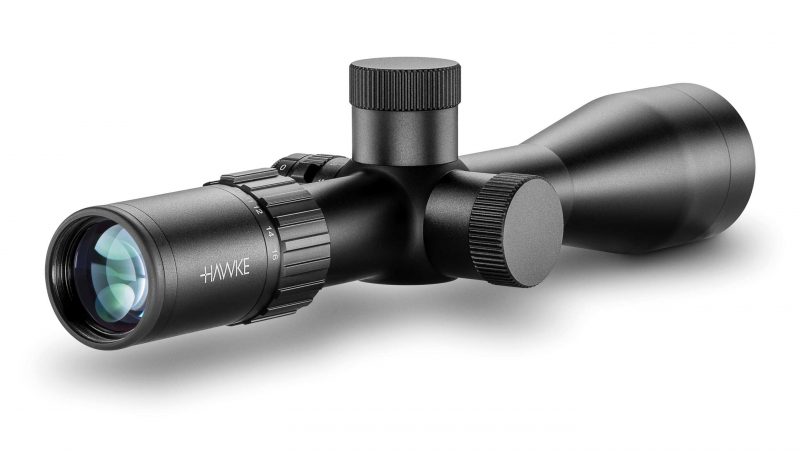

Hawke Airmax 30 SF Compact 4-16×44 AMX IR Reticle

Hawke Airmax 30 WA SF Compact 4-16 x 44 SF Scope Features:

Hawke Code:13210
Capped Target Turrets
30mm Mono-Tube Chassis
Wide Angle
Side Focus
Illumination
16 Layer Fully Multi-Coated Lenses
High Torque Zoom Ring
Fast Focus Eyebell
AMX Reticle Designed For Airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof
All calibre rated

Hawke No-Fault Lifetime Warranty.

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Hawke Airmax 30 WA SF Compact 4-16 x 44 SF Scope Specifications:

Length: 296mm/11.7″
Weight: 621g/21.9oz
Eye relief: 76mm/3″
Focus/Parallax: Side Focus – 9m – /10yds –
Field of View: 10.9 – 2.7m @100m/32.8 – 8.2ft @100yds
Exit Pupil: 11-2.8mm/0.43-0.11″
Chassis: 30mm Mono-tube
Optical System: 4-16×
Objective: 44mm
Illumination: Red
Reticle: AMX IR
Elevation Increment: 110 MRAD
Elevation Adjustment Range: 20 MRAD
Windage Increment: 110 MRAD
Windage Adjustment Range: 20 MRAD
Material: Aluminium
Ocular Type: Fast Focus
Lens Coating: Fully Multi-Coated – 16 Layers
Power Selector Style: Knurled Posi-Grip
Focal Plane: Second Focal Plane (SFP)
Turret Caps: Yes
Turret Type: Capped Target Turrets
