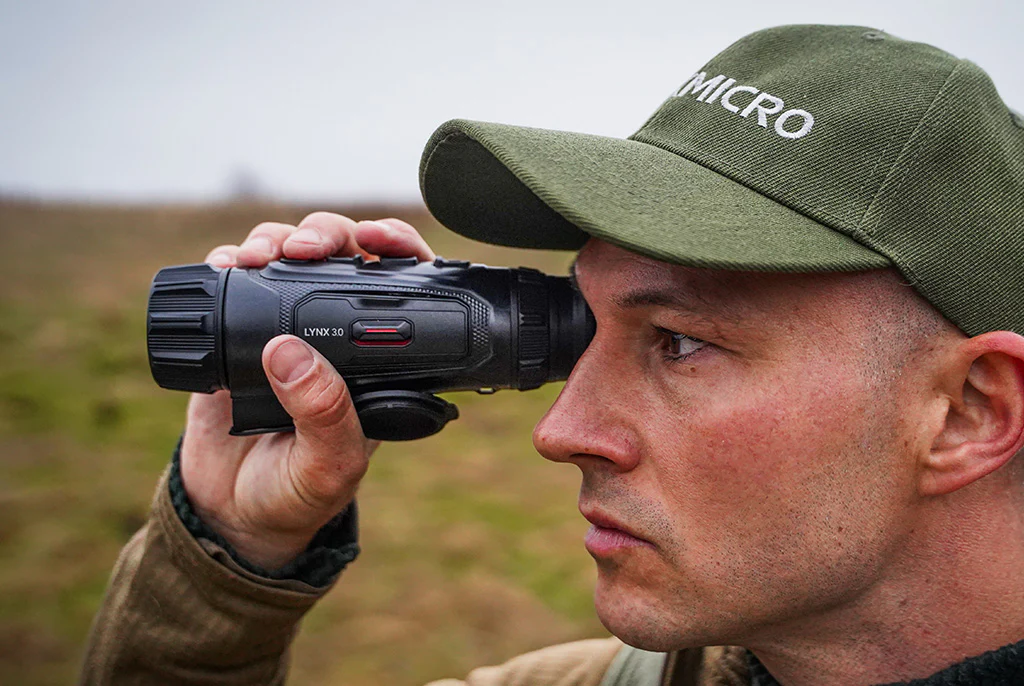

HikMicro Lynx LQ35L 3.0 Thermal Monocular

Thermal Sensor and Optical Configuration
The Lynx 3.0 LQ35L is built around a 640×512 VOx uncooled focal plane array with a 12µm pixel pitch and NETD below 15mK. This specification supports improved thermal sensitivity and target discrimination in low contrast environments.

A 35mm F1.0 objective lens provides a structured balance between detection capability and field coverage. The unit delivers a specified detection range of up to 1800 metres, making it suitable for mid-to-long-range observation.

Base optical magnification starts at 1.9× and extends to 15.2× via digital zoom. A minimum focusing distance of 3.5 metres ensures usability across both close and extended observation scenarios. The field of view is specified at 12.5° × 7.5°, equivalent to 21.9m × 13.2m at 100 metres.

Integrated Laser Rangefinder System
The LQ35L variant incorporates a built-in laser rangefinder, extending the functional capability beyond standard handheld thermal monoculars. The system operates at a wavelength of 905nm and provides a maximum measuring range of up to 1200 metres.

Measurement accuracy is specified at ±1 metre, with a minimum measuring distance of 5 metres. The rangefinder is classified as Class 1 for laser safety, supporting routine field use without additional safety requirements.

This integration allows direct distance assessment without reliance on external devices, particularly relevant for users operating in open terrain or requiring accurate range confirmation alongside thermal detection.

Image Processing and Display System
The Lynx 3.0 LQ35L integrates Image Pro 3.0 and Zoom Pro processing algorithms, supporting improved image clarity and stability, particularly under digital magnification.

The system uses HSIS (HIKMICRO Shutterless Image System), eliminating periodic shutter calibration interruptions and maintaining a continuous viewing experience.

The display is a 0.49-inch AMOLED panel with a resolution of 1920 × 1080. This provides a high-resolution viewing platform, supporting detailed image interpretation across varying environmental conditions.

Multiple colour palettes are available, including Black Hot, White Hot, Red Hot, Fusion, and monochrome options, allowing adaptation to different observation scenarios.

Recording, Connectivity and System Functions
The device includes onboard video recording, snapshot capture, and audio recording, with 64GB of internal EMMC storage. This supports local recording without external media.

Wireless connectivity is provided via dual-band Wi-Fi (2.4GHz and 5GHz), enabling connection to external devices for image streaming and control.

Additional system functions include Picture-in-Picture (PIP), Hot Track target detection, distance measurement, and standby mode. A local album function is also included for reviewing stored media directly on the device.

Power System and Physical Design
The Lynx 3.0 LQ35L is powered by a replaceable and rechargeable 18650 lithium-ion battery. Operating time is specified at up to 5 hours at 25°C with hotspot enabled, or approximately 4.5 hours at -20°C.

External power is supported via USB Type-C (5V, 2A), allowing both direct operation and charging.

The device measures 173.3 × 66.8 × 49.3 mm and weighs 410.7g including battery. It is rated to IP67 for protection against water and dust ingress, supporting use in varied environmental conditions.

Key Features

640 × 512 VOx thermal sensor, 12µm pixel pitch
NETD < 15 mK thermal sensitivity
35mm F1.0 objective lens
Detection range up to 1800 metres
Integrated laser rangefinder (up to 1200m)
1.9× base magnification (up to 15.2× digital)
HSIS shutterless imaging system
Image Pro 3.0 and Zoom Pro processing
0.49-inch AMOLED display (1920 × 1080)
64GB internal EMMC storage
Video, image, and audio recording
Dual-band Wi-Fi (2.4GHz / 5GHz)
Replaceable 18650 battery system
USB-C external power support
IP67-rated housing

Technical Specifications

Image Sensor: VOx Uncooled Focal Plane Arrays
Resolution: 640 × 512
Pixel Pitch: 12 µm
Frame Rate: 50 Hz
Spectral Range: 8–14 µm
NETD: < 15 mK (@25°C, F#=1.0)
Lens: 35 mm, F1.0
Detection Range: 1800 m
Magnification: 1.9× – 15.2× (8× digital zoom)
Field of View: 12.5° × 7.5° (21.9m × 13.2m @100m)
Minimum Focus Distance: 3.5 m
Display: 0.49″ AMOLED, 1920 × 1080
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Eye Relief: 20 mm
Diopter Adjustment:  -5D to +3D
Video Recording: Yes
Audio Recording: Yes
Storage: 64 GB EMMC
Wi-Fi: 2.4 GHz / 5 GHz
Battery Type: Replaceable 18650 Li-ion
Battery Life: Up to 5 hours (@25°C), 4.5 hours (@-20°C)
External Power: USB-C, 5V DC, 2A
Protection Rating: IP67
Dimensions: 173.3 × 66.8 × 49.3 mm
Weight: 410.7 g (with battery)
Operating Temperature: -30°C to 45°C
Laser Safety Class: Class 1
Laser Wavelength: 905 nm
Max Measuring Range: 1200 m
Measurement Accuracy: ±1 m
Minimum Measuring Range: 5 m

In the box

1 x Lynx 3.0 LQ35L Thermal Monocular
1 x Type-C USB Cable
1 x Battery Charger
2 x 18650 Battery
1 x Lint Free Cloth
1 x Quick Start Guid
