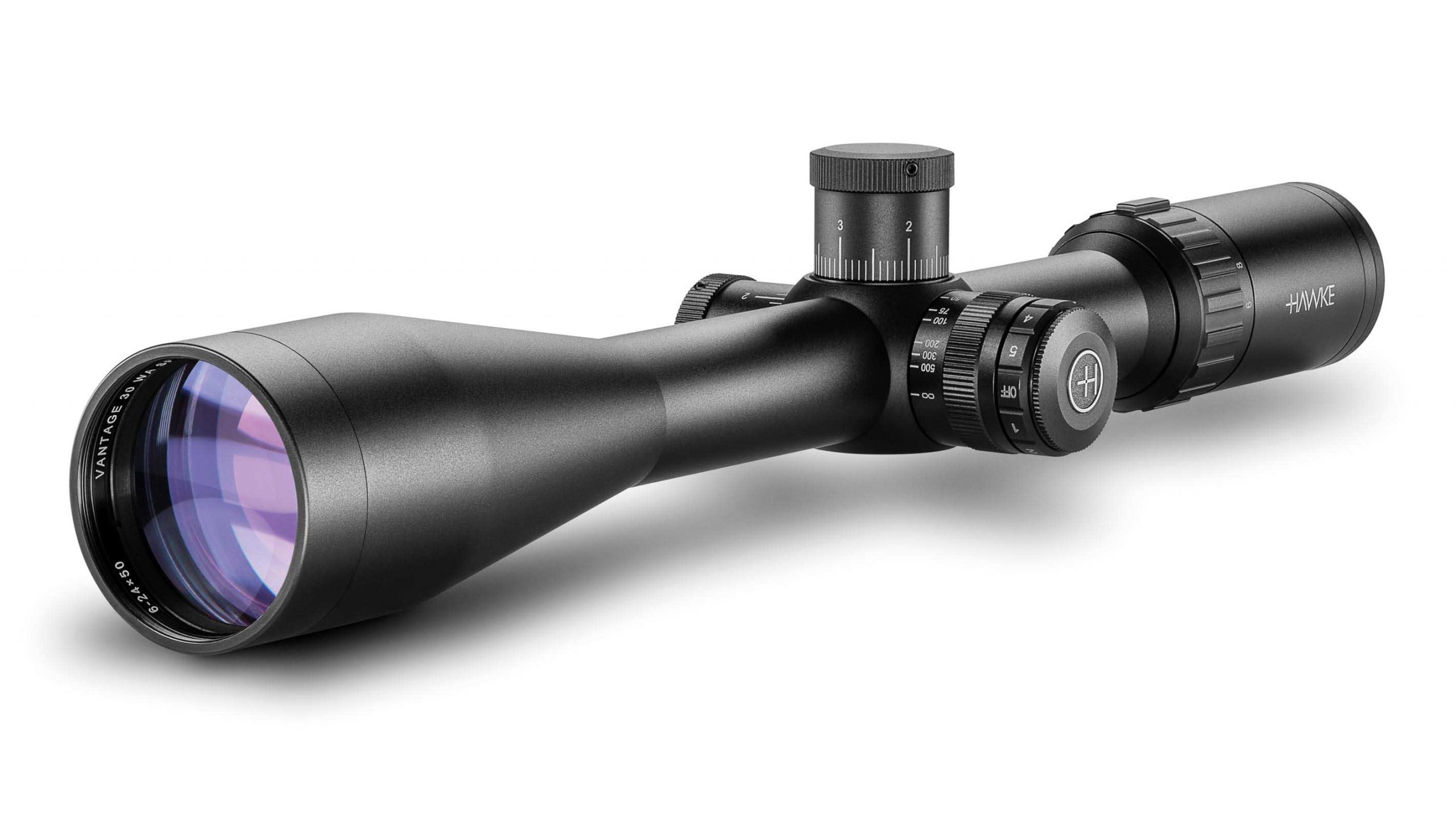

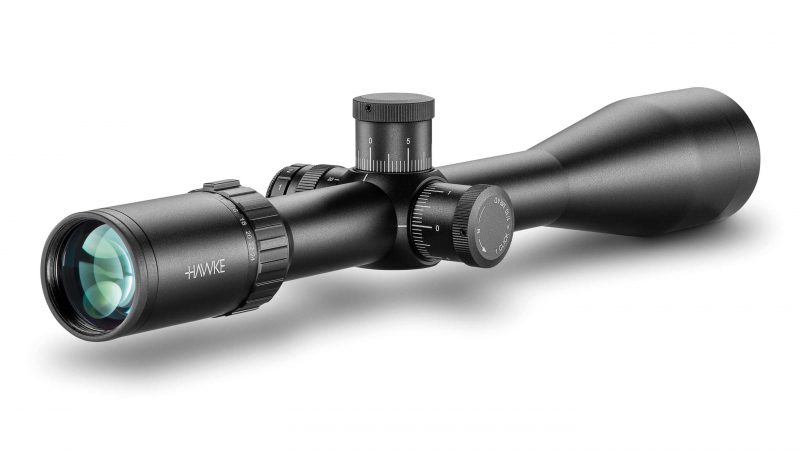

Hawke Vantage 30 WA 3-9×42 L4A Dot Reticle

An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

Capped Low-Profile Turrets
30mm Mono-tube chassis
Wide Angle
Illumination
11 layer Fully Multi-Coated lenses
High torque zoom ring
Fast focus eyeball

Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.

L4A Dot Reticle (2 MOA)
A variant of the classic L4 reticle, the L4A Dot uses a more open outer post design to keep more of the target visible while aiming. 30″ spacing from center to post at 100yds when on 4x magnification. This is equivalent to 83cm at 100m.

Optical System; System H2
Scope Tube: 30mm
Magnification: 3 – 9x
Objective Lens: 42mm
Reticle: L4A Dot
Illumination: 5 Levels – Red/Green
Parallax: Fixed
Focal Plane: SFP (Second Focal Plane)
Lens Coating: Fully Multi-Coated – 11 Layers
Field of View: 42.2 – 13.1ft @100yds / 14.1 – 4.4m @100m
Field of View (°): 8 – 2.5
Eye Relief: 3.5in / 90mm
PX/Focus: 100yds / 91m
Exit Pupil: 0.55 – 0.19″ / 14 – 4.7mm
Turret Type ; Capped
Turret Caps: YES
Click Value: 1⁄ 4MOA
Elevation Turret Clicks (max): 120 MOA
Windage Turret Clicks (max): 120 MOA
Ocular Type: Fast Focus
Power Selector:Knurled Posi-Grip
Length: 13in / 329mm
Weight: 17.5oz / 495g

SUPPLIED WITH

Box

Instruction Manual

Reticle Booklet

Lens Covers

Lens Cloth

CR2032 Battery
