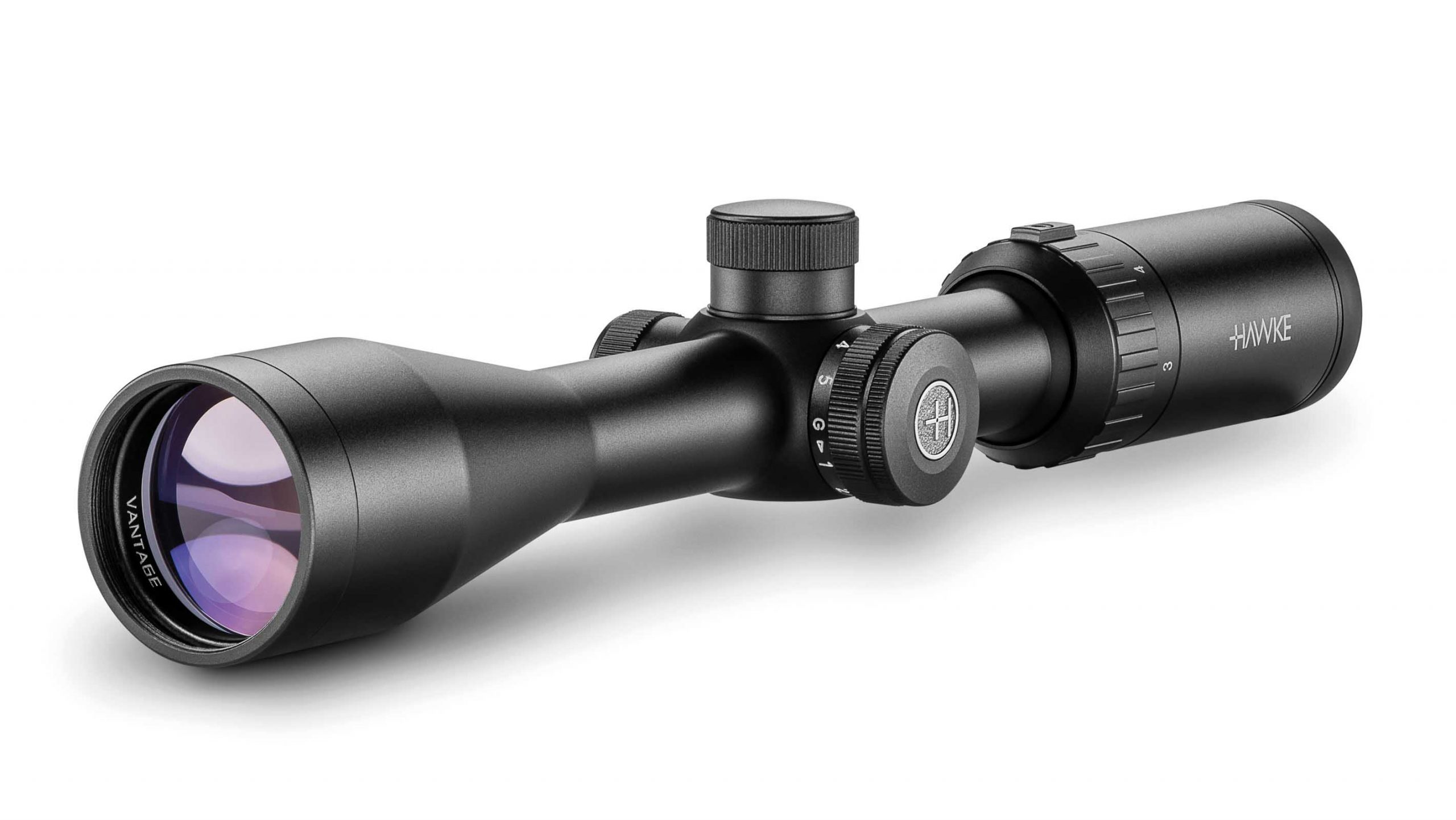

Hawke_Riflescope Vantage IR_3-9×40 Mil Dot IR Reticle

An extensive range of scopes to suit all calibres and disciplines.
All Vantage riflescopes feature our H2 optics in a variety of configurations.

IR models feature precision glass etched reticles with multi-stage illumination in both red and green.

Capped Low-Profile Turrets
1 Inch Mono-tube chassis
Illumination
11 layer Fully Multi-Coated lenses
High torque zoom ring
Fast focus eyebell
Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.

Mil Dot Illuminated Reticle

The classic Mil Dot features multiple aim points for hold-over and hold-under. Accurate mil spacing on 10x, featuring 4 Mil Dots in each direction. Glass etched reticle that has 5 brightness levels of illumination in both red and green, or can be turned off for a solid black reticle.

Hawke Mil Dot Reticle

Optical System: System H2
Scope Tube: 1 Inch
Magnification: 3 – 9x
Objective Lens: 40mm
Reticle: Mil Dot IR
Illumination: 5 Levels – Red/Green
Parallax: Fixed
Focal Plane: SFP (Second Focal Plane)
Lens Coating: Fully Multi-Coated – 11 Layers
Field of View: 39 – 12.7ft @100yds 13 – 4.2m @100m
Field of View (°): 7.4 – 2.4
Eye Relief: 3.5in 90mm
PX/Focus: 100yds 91m
Exit Pupil 0.52 – 0.17″ 13.3 – 4.4mm
Turret Type: Capped
Turret Caps: YES
Click Value: 1⁄ 4MOA
Elevation Turret Clicks (max): 100 MOA
Windage Turret Clicks (max): 100 MOA
Ocular Type: Fast Focus
Power Selector: Knurled Posi-Grip
Length: 12.4in 315mm
Weight: 15.2oz 430g

SUPPLIED WITH

Box

Instruction Manual

Lens Covers

Lens Cloth

CR2032 Battery
