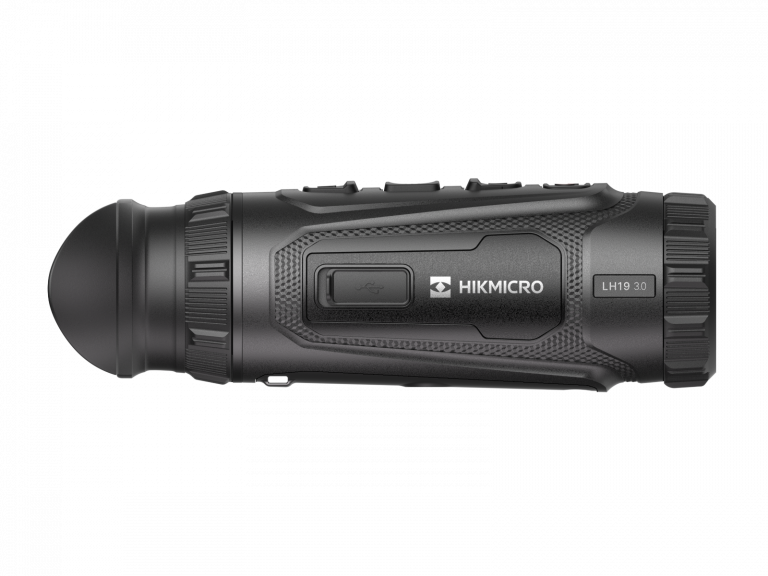

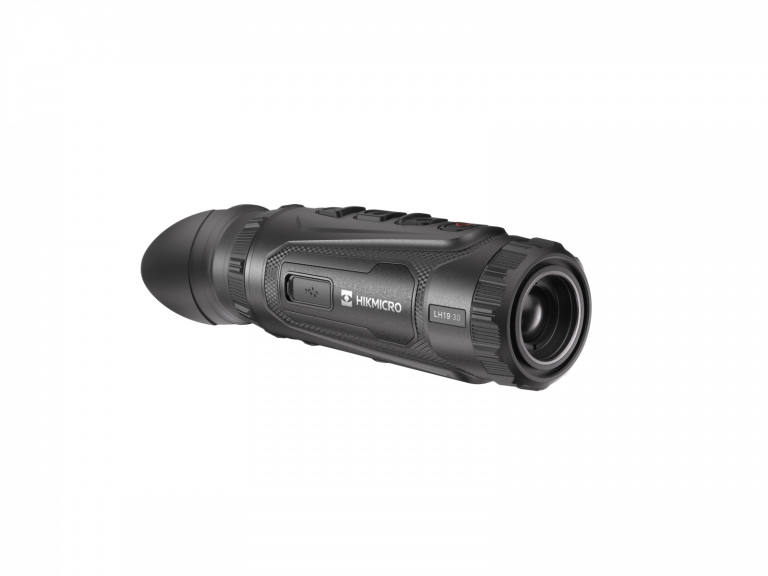

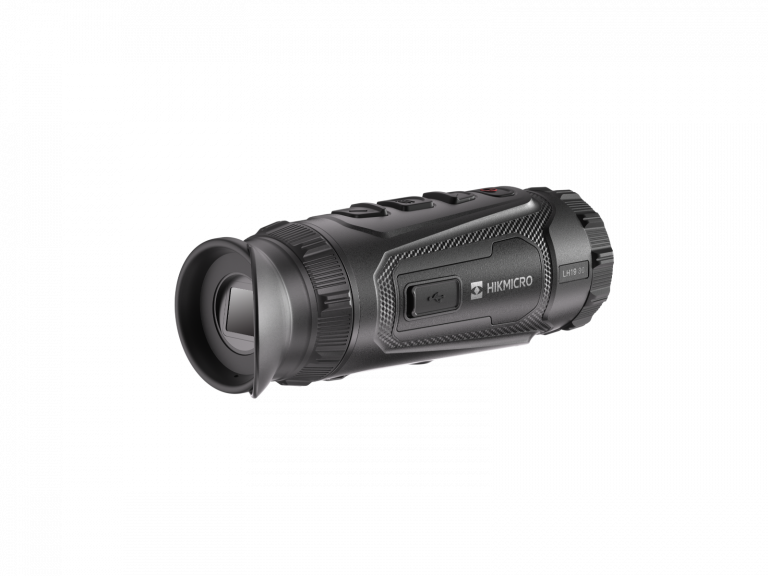

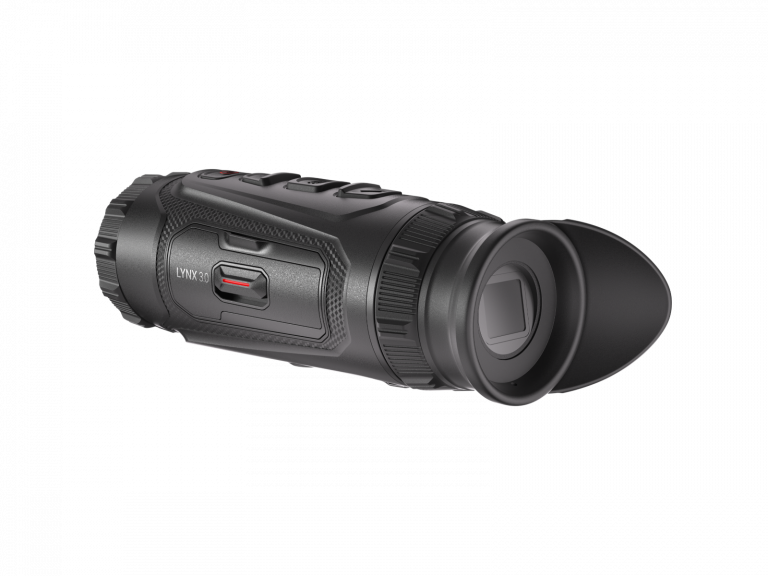

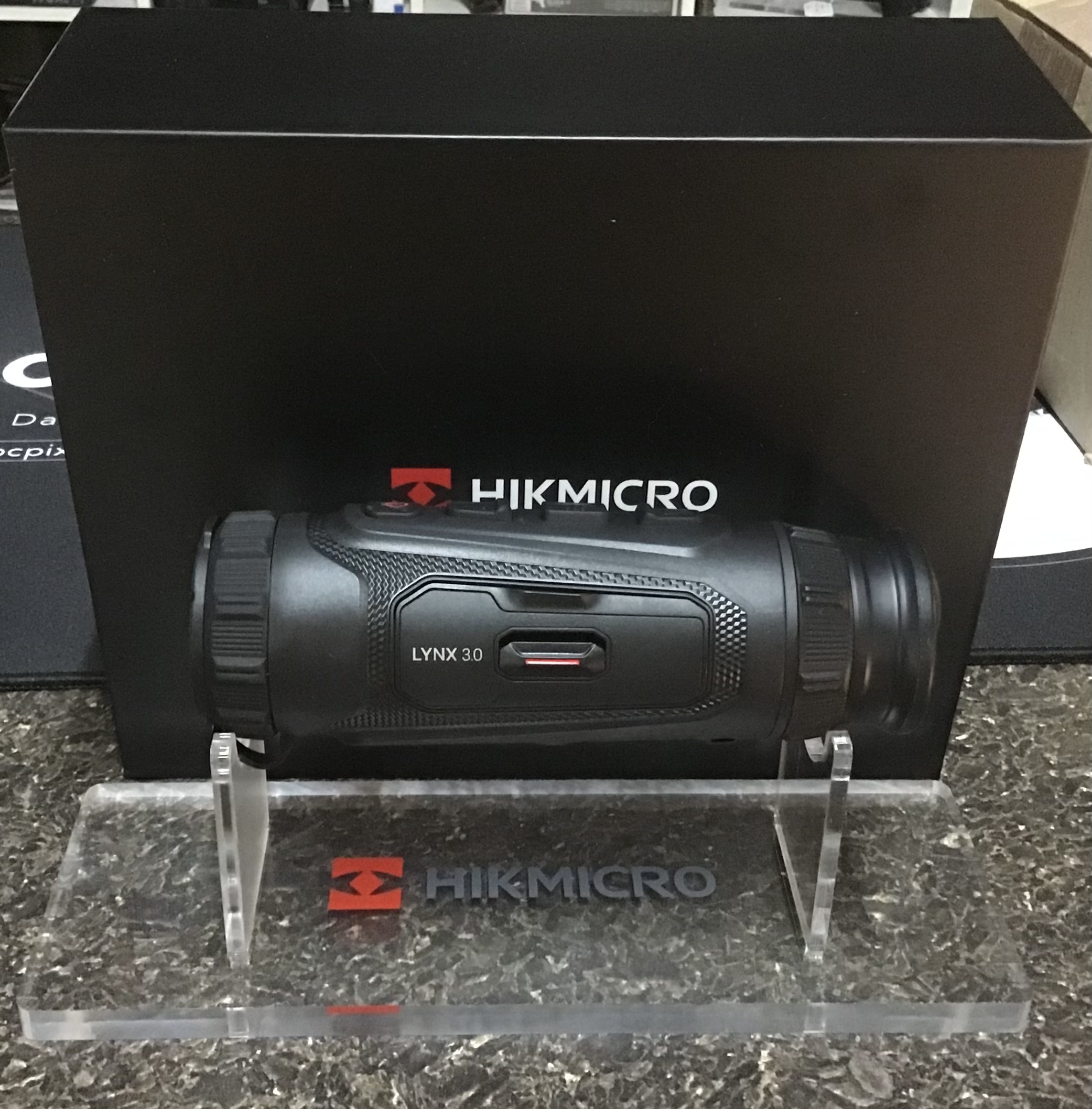

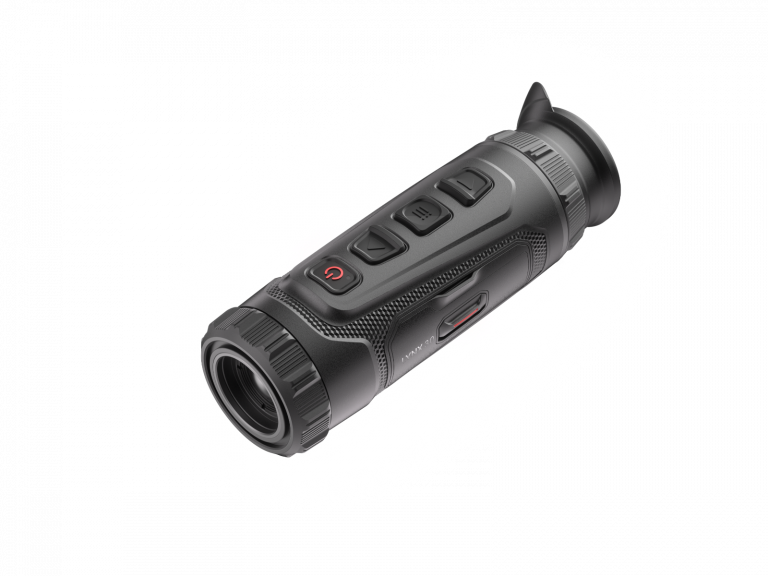

HIKMICRO Lynx 3.0 LH19 19mm Thermal Monocular

The HIKMICRO Lynx 3.0 LH19 sets a new benchmark in portable thermal optics. Equipped with a 384×288 thermal detector and a 19mm F1.0 lens, it delivers 1.9x base magnification, a 13.8° field of view, and a 900-metre detection range, providing sharp detail and versatile coverage for professionals in the field.

Enhanced with AI-powered Image Pro 3.0 and Zoom Pro algorithms, the LH19 ensures superior contrast and detail recognition. Its HIKMICRO Shutterless Image System (HSIS) guarantees smooth, noise-free imaging , ideal for discreet and continuous observation.

Built with durability in mind, the LH19 weighs 331 grams and is powered by a replaceable 18650 battery, offering 4.5 hours’ runtime at -20°C. Compact, ergonomic, and performance-driven, it’s a premium choice for professionals demanding exceptional image quality in a lightweight body.

SPEC
Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband:8 μm to 14 μm
NETD: Less than 15 mK (@25°C), F#=1.0
Lens (Focal Length): 19 mm, F1.0
Focus Mode: Focus Wheel
Min. Focusing Distance: 3 m
Magnification: 1.9 × – 15.2 × (8×)
Field of View (H × V), Degrees / m @100 m: 13.8° × 8.4° / 24.2 m × 14.7 m
Detection Range: 900 m
Display: 1920 × 1080, 0.49 inch, AMOLED
Contrast Adjustment: Yes
Brightness Adjustment: Yes
Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil: 6 mm
Eye Relief: 20 mm
Diopter (Range): -5 D to +3 D
Tone Adjustment: Cold, Warm
Zoom Pro: Yes
HSIS (HIKMICRO Shutterless Image System): Yes
Image Pro 3.0: Yes
Sync Pro: Yes
Battery Type: Replaceable and rechargeable 18650 battery
Protection Level: IP67
Weight: 331 g with Battery
