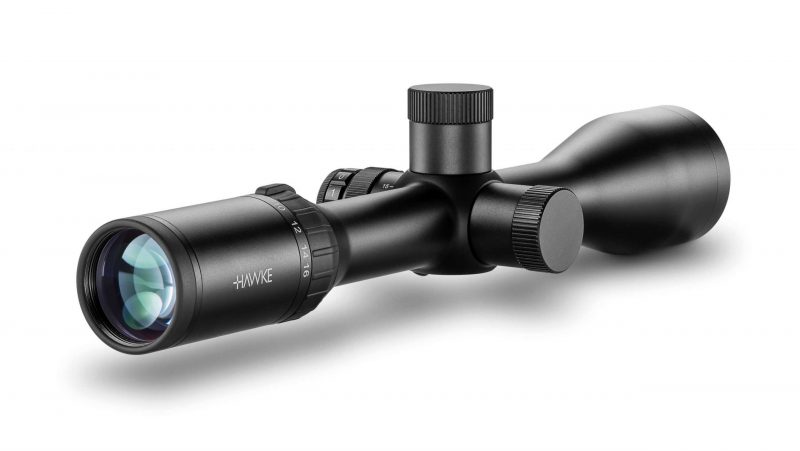

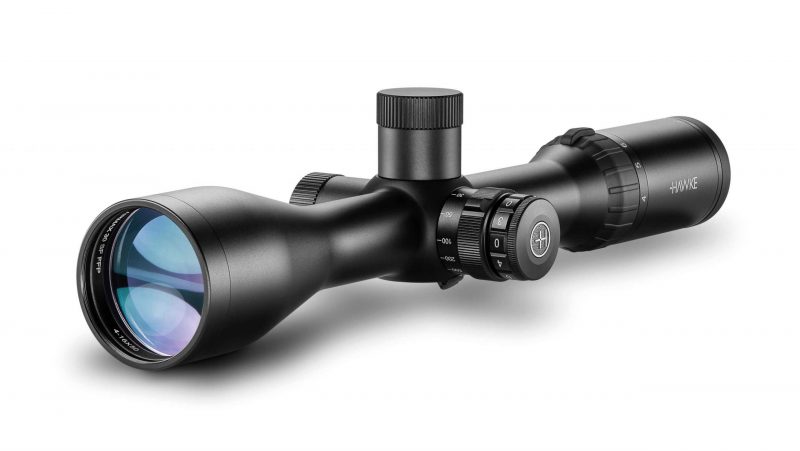

Hawke Airmax 30 FFP SF 4-16×50 AMX IR Reticle

Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.

Capped Target Turrets
30mm Mono-tube chassis
Wide Angle
Side Focus
Illumination
16 layer Fully Multi-Coated lenses
High torque zoom ring
Fast focus eyebell
AMX reticle designed for airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.

All calibre rated.

Hawke No-Fault Lifetime Warranty.

Optical System: System H2
Scope Tube: 30mm
Magnification: 4 – 16x
Objective Lens: 50mm
Reticle: FFP AMX IR (16x)
Illumination: 6 Levels (Red)
Illumination Control: Stepped Rheostat with Off Positions In-between
Parallax: Side Focus
Focal Plane: FFP (First Focal Plane)
Lens Coating: Fully Multi-Coated – 16 Layers
Field of View: 32.5 – 8.1ft @100yds / 10.8 – 2.7m @100m
Field of View (°): 6.2 – 1.5
Eye Relief: 3.5in / 90mm
PX/Focus (Error free from): 10yds – ∞ / 9m – ∞
Exit Pupil: 0.49 – 0.12″ / 12.5 – 3.1mm
Click Value: 1⁄ 10MRAD
Turret Type (Elevation): Target, Capped, Resettable
Elevation Turret Clicks (max): 21 MRAD
Turret Type (Windage) : Target, Capped, Resettable
Windage Turret Clicks (max): 21 MRAD
Ocular Type: Fast Focus
Power Selector: Rubber Coated Posi-Grip
Length: 13.7in / 348mm
Weight: 26.6oz / 755g

SUPPLIED WITH

Box
Instruction Manual
Lens Cloth
4″ Sunshade
Metal Flip-Up Lens Covers
Flip-Up Removal Tool
4″ Sidewheel
Hex Key
CR2032 Battery
